TN double shaft cylinder

Short Description : Array,Double Action,Air,1~9kgf/c㎡,10.5kgf/c㎡,-5~+70℃,100~500mm/s,-10~0mm,Adjustable Buffer,Array,Array,negotiation,10PCS,10000 Piece/Pieces per Month,NingBo Or ShangHai,T/T,L/C,PAYPAL

Contact Now

Product Detail

Product Tags

Ordering Code

TN double shaft cylinder

Specification

Bore (mm)	10	16	20	25	32
Motion Pattern	Double Action
Working Medium	Air
Operating Pressure Range	1~9kgf/c㎡
Ensured Pressure Resistance	10.5kgf/c㎡
Operating Temperature Range	-5~+70℃
Operating Speed Range	100~500mm/s
Adjustable Stroke	-10~0mm
Buffer Type	Adjustable Buffer
Non-rotating Precision	0.4°		0.3°
Port Size	M5×0.8				G1/8″

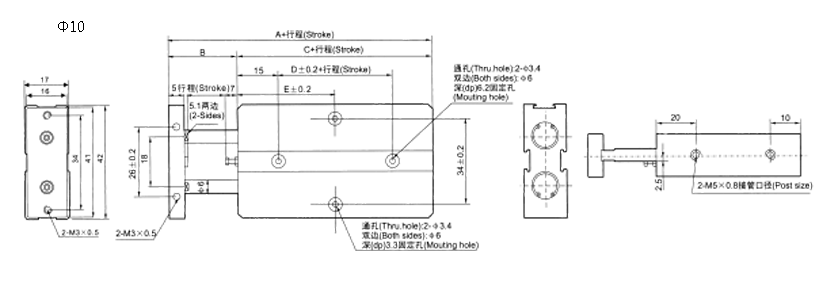

Overall Dimension

TN double shaft cylinder

Dimension Sheet

Bore	A	B	C	D	E
Item	A	B	C	D	10	20	30	40	50	60	70
10	63	12	51	10	30	30	35	040	45	50	55

Overall Dimension

Bore	A	B	C	D	E												F	G	H	I	J
Bore	A	B	C	D	10	20	30	40	50	60	70	80	90	100	125	150	F	G	H	I	J
16	68	15	53	20	30	35	40	45	50	55	60	65	70	75	87.5	100	8	47	6	24	M4×0.7/deep5
20	78	20	58	20	35	35	40	45	50	55	60	65	70	75	87.5	100	10	55	9	28	M4×0.7/deep5
25	81	19	62	30	40	40	45	50	55	60	65	70	75	80	92.5	105	10	66	8	34	M4×0.7/deep6

Bore	K	L	M	N1	N2	P1	P2	Q	R	S	T	V	W
16	47	53	20	22	11	Bothsides:Φ7.5deep7.2mm/Thru.hole:Φ4.5	Bothsides:Φ8deep4.4mm/Thru.hole:Φ4.5	34	3	54	21	8	6.1
20	55	61	24	25	12	Bothsides:Φ7.5deep7.2mm/Thru.hole:Φ4.5	Bothsides:Φ8deep4.4mm/Thru.hole:Φ4.5	44	3.5	62	25	10	8.1
25	66	72	29	27	12	Bothsides:Φ7.5deep7.2mm/Thru.hole:Φ4.5	Bothsides:Φ8deep4.4mm/Thru.hole:Φ4.5	56	7	73	30	12	10.2

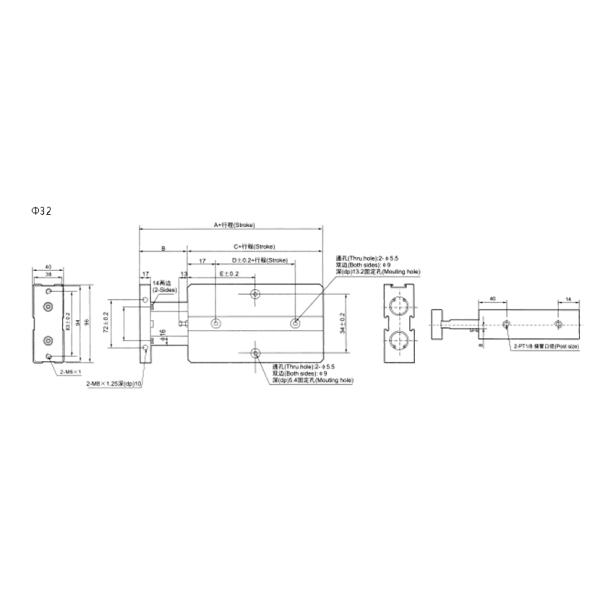

Overall Dimension

TN double shaft cylinder

Bore	A	B	C	D	E
Item	A	B	C	D	10	20	30	40	50	60	70	80	90	100	125	150
10	108	30	78	35	45	50	55	60	65	70	75	80	85	90	102.5	115
